ERPA 1800

Innovation in Elevator Safety

We take your elevator safety to the next level.
ERPA 1800 is a next-generation electromechanical progressive safety gear that combines innovation, cost-efficiency, and reliability in every lifting project.
Discover how this unique solution revolutionizes the way you protect your equipment and optimizes your operations.

CONTACT OUR TEAM

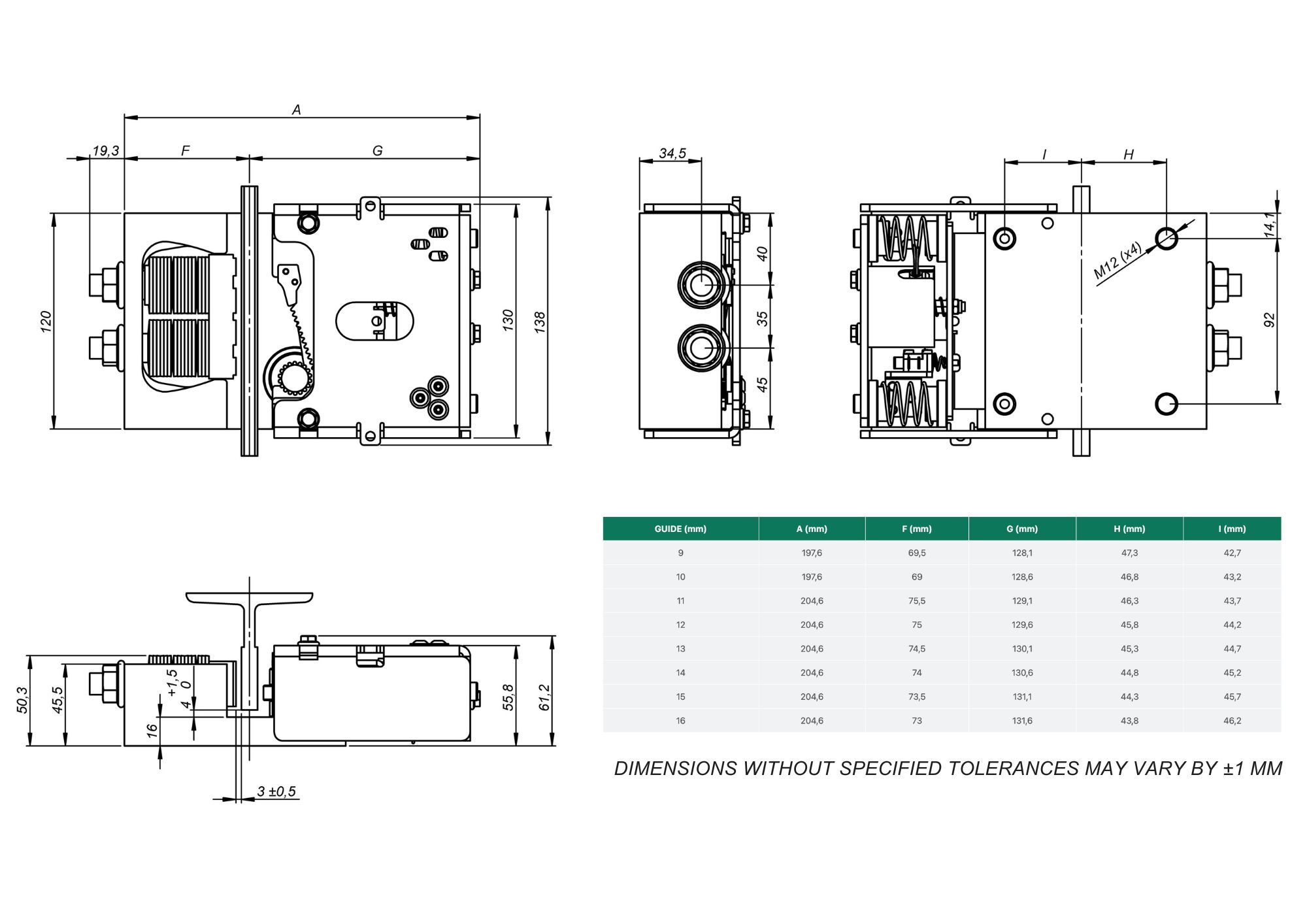

Key Technical Features

Discover the technical specifications that make the ERPA 1800 a one-of-a-kind component in the market:

  • Downward actuation.
  • Permissible load (P+Q): From a minimum of 423 kg to a maximum of 1866 kg.
  • Guide compatibility: Suitable for guide rails 9–16 mm thick (calibrated or machined surface), operating on both dry and lubricated rails.
  • Minimum braking width: 27 mm
  • Maximum nominal speed: 1.75 m/s
  • Maximum tripping speed: 2.15 m/s
  • System power supply: 24 V DC
  • Low power consumption: 0.25 A total.

Main Benefits of ERPA 1800

Implementing the ERPA 1800 brings tangible advantages to your business.
These are the reasons why ERPA 1800 makes a difference in safety and performance:

Smooth and synchronized braking

Delivers progressive stopping, resulting in greater passenger comfort and cargo protection.

Minimal guide rail wear

The reduced braking footprint ensures minimal wear during activation, resulting in less structural damage and fewer maintenance tasks after an emergency stop.

Effortless reset

Its innovative design requires much less release force. ERPA 1800 can be reset with less than 100 mm of vertical movement.

Faster stopping

Shorter total stopping distance (from overspeed detection to full stop). The elevator stops sooner than with conventional systems, increasing safety in critical situations.

Automatic remote monitoring

Allows automated periodic testing via the elevator software. No manual intervention needed to regularly verify the system’s status and ensure continuous reliability.

Simplified system

Its reduced dimensions make integration easy, even in elevator shafts with limited space. An optimized size that simplifies both installation and replacement of older equipment.

Compact design

Its reduced dimensions make integration easy, even in elevator shafts with limited space. An optimized size that simplifies both installation and replacement of older equipment.

ERPA 1800 vs. Conventional Safety Gears

ICONO_2

Activation method: ERPA 1800 uses electromechanical actuation integrated with the elevator’s electronic control. This allows precise, coordinated tripping (including remote self-testing). In contrast, conventional brakes are activated purely by mechanical mechanical systems (cables and pulleys) with no option for electronic verification.

ICONO_2

Response time: The ERPA 1800 system reacts and stops the car with significantly less travel. Traditional safety gears require more distance to bring the elevator to a full stop, resulting in more travel before braking.

ICONO_2

Reset and maintenance: With ERPA 1800, resetting after activation can be done remotely or automatically, with no need for direct technician intervention. A conventional system requires a technician to travel to the site and manually unlock the device after each activation.

ICONO_2

Braking quality: ERPA 1800 provides smooth, uniform braking, minimizing rail wear. Conversely, a conventional safety gear often produces a rougher stop and more pronounced marks on the guide rails, requiring more time-consuming maintenance.

ICONO_2

Operating cost: While innovation ERPA 1800 may involve a higher initial investment, it delivers long-term savings through fewer extra components and reduced periodic maintenance. Traditional systems may be cheaper up front, but they involve more external parts, frequent adjustments (e.g., cable tensioning), and higher failure risks, which ultimately increase operational costs.

Ready to take your project’s safety to the next level?

Luezar’s ERPA 1800 is more than a product—it’s a leap forward in industrial elevator safety and efficiency. With nearly 30 years of experience in the industry, Luezar designs reliable , custom solutions tailored to your company’s needs.

Choose the innovation and peace of mind that the ERPA 1800 offers. Give your elevators the advanced protection they deserve and your team the confidence of working with the latest in safety technology.

Contact our team and find out how the ERPA 1800 can transform your elevator projects. We’re ready to support you every step of the way toward a safer, more efficient future!
